172494-1
Manufacturer:
TE Connectivity
Mfr.Part #:
172494-1
Datasheet:
Description:

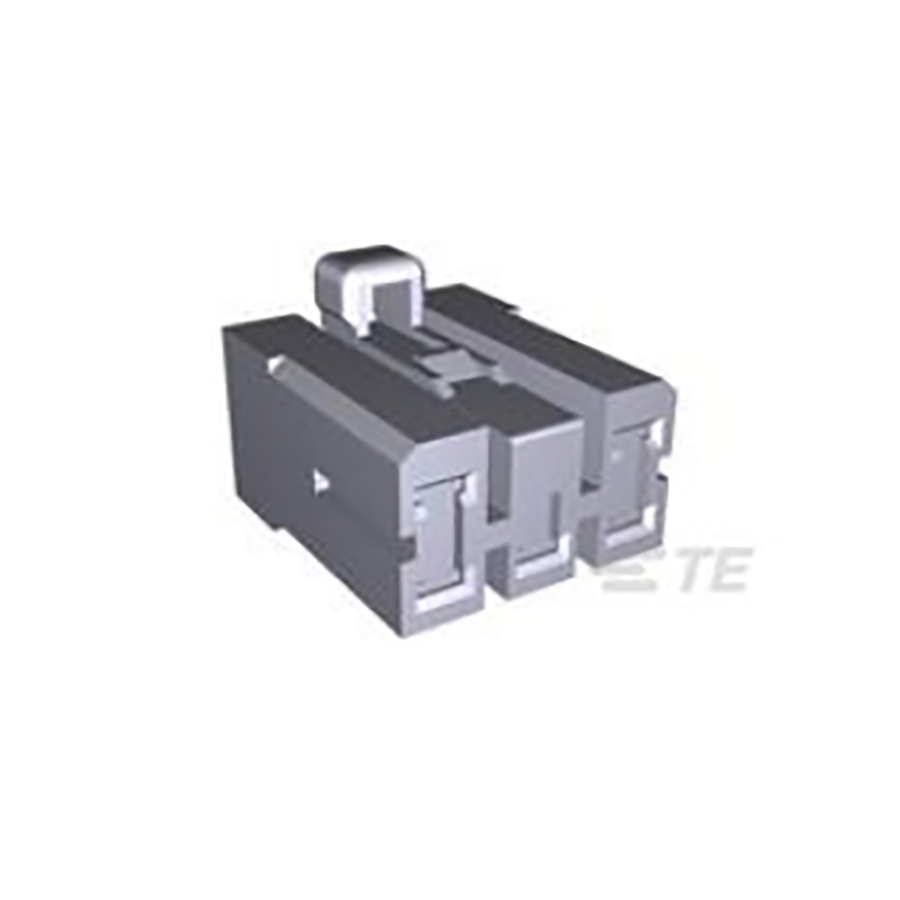

Headers and Wire Housings Free Hanging Plug, Socket Number of Positions:5 Pitch:5 mm
| Parameter | Value |
|---|---|
| Length | 24 mm |
| Width | 19.9898 mm |
| Termination | Crimp |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -22 °C |
| Height | 18.796 mm |
| Packaging | Bulk |
| Depth | 24 mm |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Pitch | 5 mm |
| Flammability Rating | UL94V-2 |
| Orientation | Straight |
| Lifecycle Status | Production (Last Updated: 2 weeks ago) |
| Color | Natural |
| Gender | Male |
| Number of Contacts | 5 |
| ELV | Compliant |
| Connector Type | Plug, Socket |
| Number of Positions | 5 |
| Number of Rows | 2 |
| Row Spacing | 3.5 mm |
| Housing Material | Nylon |
| Fastening Type | Latch |
| Circuit Application | Signal |
| Housing Color | Natural |
| Mating Tab Width | 2.9972 mm |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 2 weeks ago) |
| Polarized | Yes |
| Hybrid Connector | No |
| Serviceable | Yes |
Stock: 192
Distributors
pcbx
pcbxUnit Price$0.18298
Ext.Price$0.18298
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.18298 | $0.18298 |
| 10 | $0.16463 | $1.64630 |
| 50 | $0.14813 | $7.40650 |
| 100 | $0.12566 | $12.56600 |
| 500 | $0.10660 | $53.30000 |
| 1000 | $0.10229 | $102.29000 |
| 3000 | $0.09815 | $294.45000 |
| 5000 | $0.09418 | $470.90000 |
